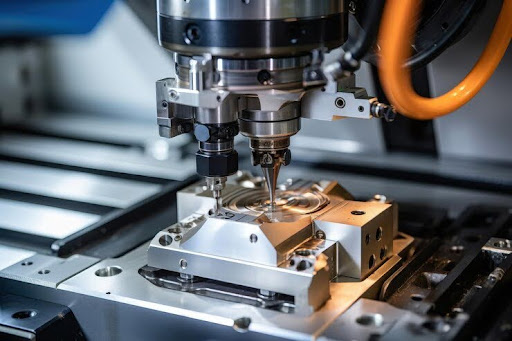

Wire EDM machining is an ultra-precise manufacturing process that is popularly used for cutting intricate and complex components from hard materials. This non-traditional machining method uses a thin electrically charged wire to erode material from the workpiece, enabling the production of precise and detailed parts that traditional machining methods cannot achieve. Given the variety of applications, the right type of Wire EDM Machining must be selected to suit the manufacture being made.
1. Conventional Wire EDM
The majority of conventional Wire EDM Machining is utilized for creating highly precise and intricate components. It essentially involves moving a metal wire of brass, copper, or other conductive materials continuously through the workpiece, with no actual contact. As a result, extreme precision is achieved in terms of material removal through electrical discharges between the wire and the material. This method is ideal for manufacturing intricate components in industries such as aerospace, medical devices, and precision tooling. Its ability to cut hard metals and alloys without inducing stress makes it a preferred choice for delicate parts.
2. High-Speed Wire EDM
High-speed Wire EDM Machining is intended for faster removal of material without sacrificing precision. This process uses machine settings designed for cutting performance, optimized wire types, and superior flushing techniques to gain maximum cutting speed. High-speed wire EDM is used where mass production and rapid turnaround are required. It sacrificed a small degree of accuracy to conventional wire EDM, but the utility of high-speed wire EDM is very high in applications requiring maximum speed over very fine tolerances.
3. Multi-Axis Wire EDM
This facilitates more complex cuts. It allows a wire to follow multiple axes for the cutting movement. This technology is ideal when making parts that require intricate geometry, tapered cuts, and other angles. Thus, multi-axis capability expands one’s design to create components with high precision in nature, which applies to aerospace, automotive, or mold-making fields. Multi-axis EDM is well suited for more complex projects when flexibility in terms of cutting angle and shape is needed.
4. Fine Wire EDM
Fine wire EDM is a niche process used for micro-machining applications. It uses ultra-thin wires as small as 0.02 mm in diameter to achieve extremely tight tolerances and high surface finishes. This process is widely used for producing miniature components and delicate parts in industries like electronics, medical devices, and precision tooling. Fine wire EDM is critical when detail, precision, and minimal material removal are critical factors.
5. Automated Wire EDM
Automated Wire EDM Machining uses automation elements such as robotic loading and unloading, automatic wire threading, and adaptive control systems. These machines are designed to operate for long periods without human intervention, thus enhancing productivity and minimizing downtime. Automated EDM systems are highly efficient for mass production and complex projects requiring constant accuracy and repeatability. This technology is very useful in industries that require high-volume production with strict quality demands.
6. Submerged Wire EDM
Submerged wire EDM involves completely immersing the workpiece and wire in a dielectric fluid, typically deionized water. This setup stabilizes the cutting process by controlling temperature fluctuations and reducing the risk of wire breakage. Submerged EDM provides better surface finishes and tighter tolerances compared to dry EDM processes. It is commonly used for precision machining of hard metals and intricate parts that require excellent surface quality.
Conclusion
The type of Wire EDM Machining depends on the material properties, desired precision, production volume, and part complexity. Each type of conventional, high-speed, multi-axis, fine wire, automated, or submerged EDM offers unique advantages suited to specific manufacturing needs.
For industries looking for reliable and high-precision wire EDM solutions, Gemsons Precision Engineering Private Limited (GPEPL) offers cutting-edge technology and decades of expertise to deliver exceptional results across various industries.
